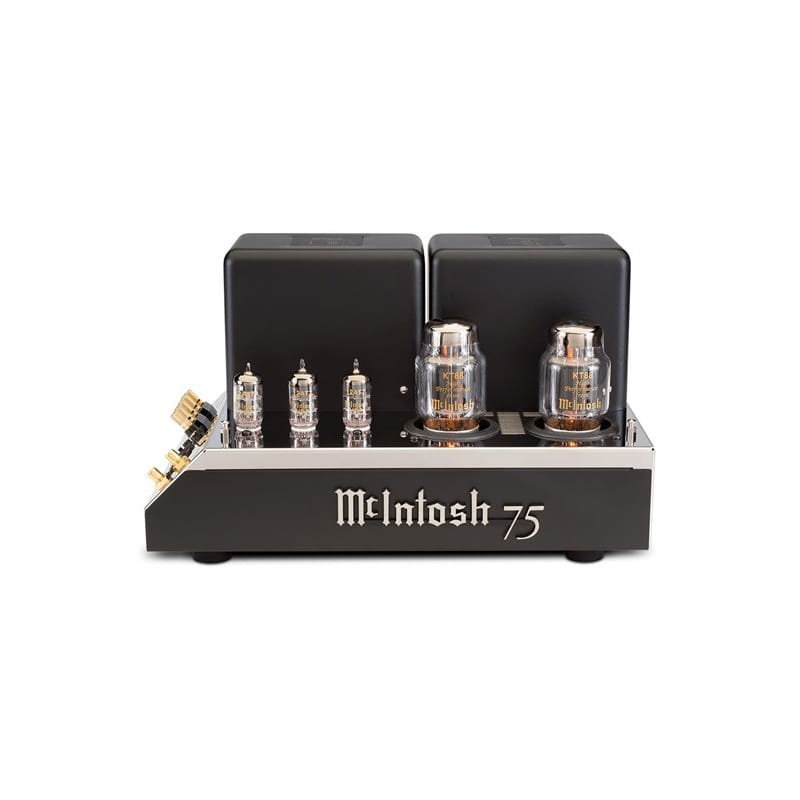

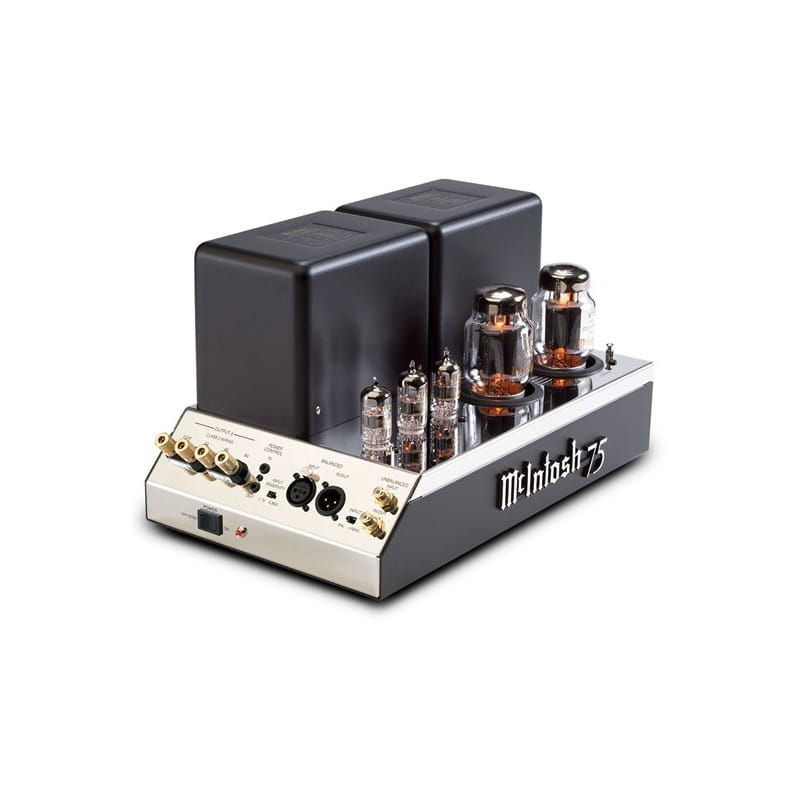

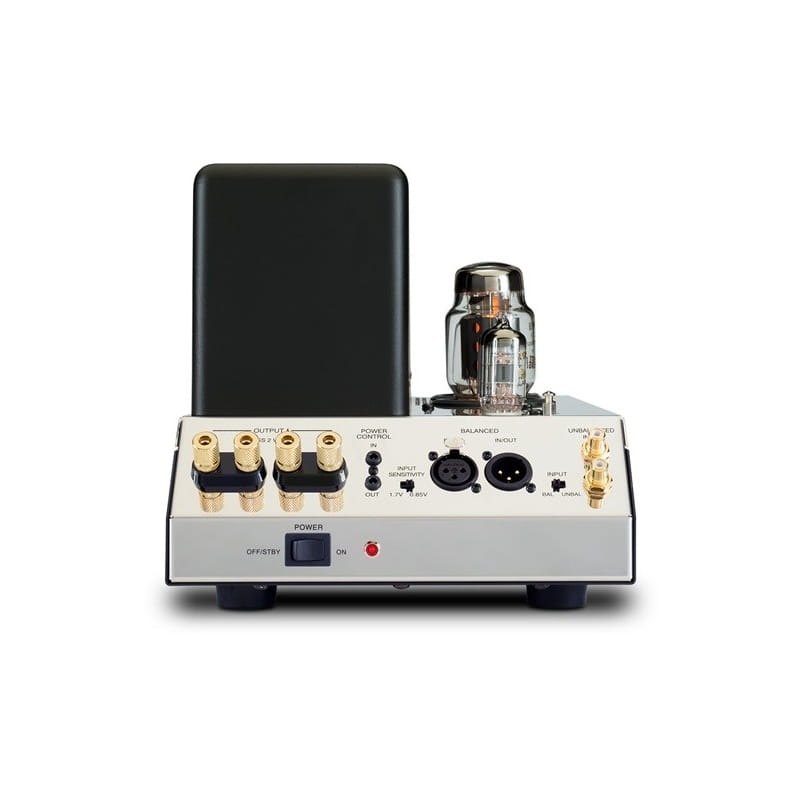

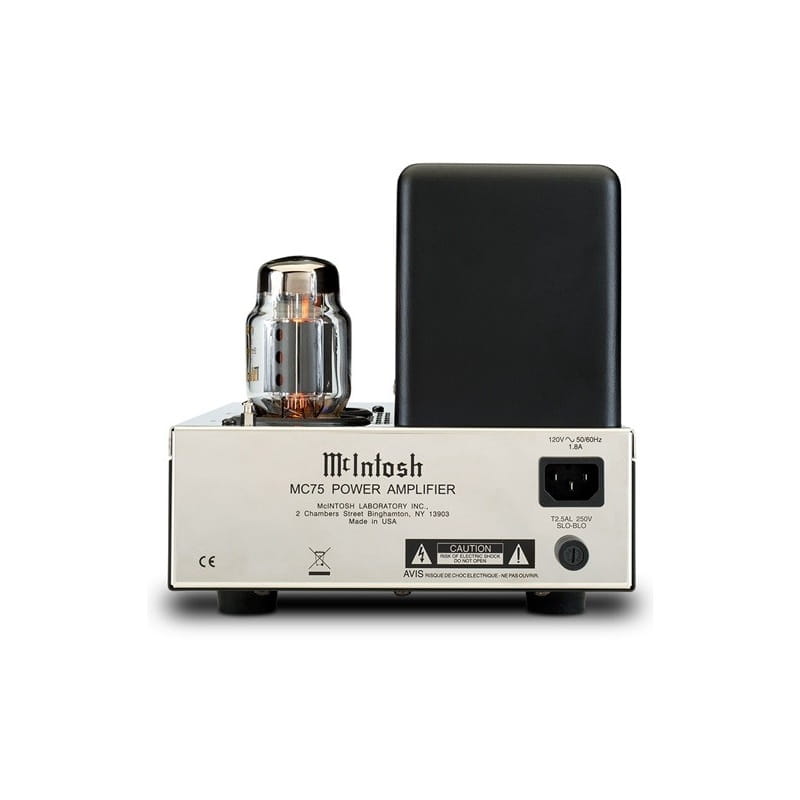

McIntosh MC75

The MC75 mono vacuum tube power amplifier delivers modern performance standards in a classic design. It has all the features to meet the needs of today’s music enthusiast. As with all McIntosh mono amplifiers, the MC75 will provide ultimate stereo separation with each channel utilizing a separate amplifier. 75 Watts of power is output into a 2, 4 or 8 Ohm speaker with less than 0.5% distortion.
McIntosh’s patented Unity Coupled Circuit design provides low distortion, extended frequency response and long tube life. The MC75’s large, oversize power transformer provides unusually high power and dynamic response from a single pair of KT88 output tubes, once again setting the performance benchmark for tube amplification.
Balanced and unbalanced inputs combined with power control allow matching with all contemporary McIntosh preamplifiers and processors. Sentry Monitor™ tube protection circuit will ensure the MC75 will have a long and trouble free operating life. Contact your local dealer to learn more.

ELECTRONIC SPECIFICATIONS

• Power Output per Channel: 75W @ 2, 4 or 8 Ohms

• Number of Channels: 1

• Total Harmonic Distortion: 0.5%

• S/N below rated output: 110dB

• Dynamic Headroom: 1.5dB

• Damping Factor: >18 Wideband

• Rated Power Band: 20Hz to 20kHz

• Frequency Response

  +0, -0.5dB from 20Hz to 20,000Hz
  +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

• Remote Power Control: Yes, input and output

• Multi-Channel DB25 Cable: N/A

GENERAL SPECIFICATIONS

• Circuit Configuration: Unity Coupled

• Circuit Design: Vacuum Tube

• Mono Bridge: No

• Mono Parallel: No

• Output Type: Unity Coupled Output Transformer

• Meters: No

• Meter Light Switch: No

• Balanced Input: Yes

• Front Panel: N/A

• Illumination: Small Signal Tubes

• Chassis Style: Polished Stainless Steel

CONNECTIVITY

• Speaker Binding Post Type: Yes

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D): 17-3/4" (45.09cm) (including cables) x 8-1/2" (21.6cm) (including feet) x 8-1/2" (21.59cm)

• Weight: 38 lbs (17.24 kg)

• Shipping Weight: 43.5 lbs (19.73 kg)
